Guyker JM002 Jazzmaster Tremolo Bridge System with Upgraded Stainless Steel Vibrato Arm

Key Features:

• Upgraded stainless steel vibrato arm and stainless steel base plate for durable hardware construction and smoother tremolo response.
• Designed for Jazzmaster and Jazzmaster-style electric guitars with a matching tremolo mounting layout.
• Improved string path supports easier string installation during setup and restringing.
• The baseplate uses 6 mounting screw holes, helping distribute load more evenly when the vibrato arm is used and supporting better long-term mounting stability.
• A rear spring-tension adjustment screw allows the tremolo to be tightened down, so customers can reduce or disable the vibrato function and return to a more fixed-feel setup.

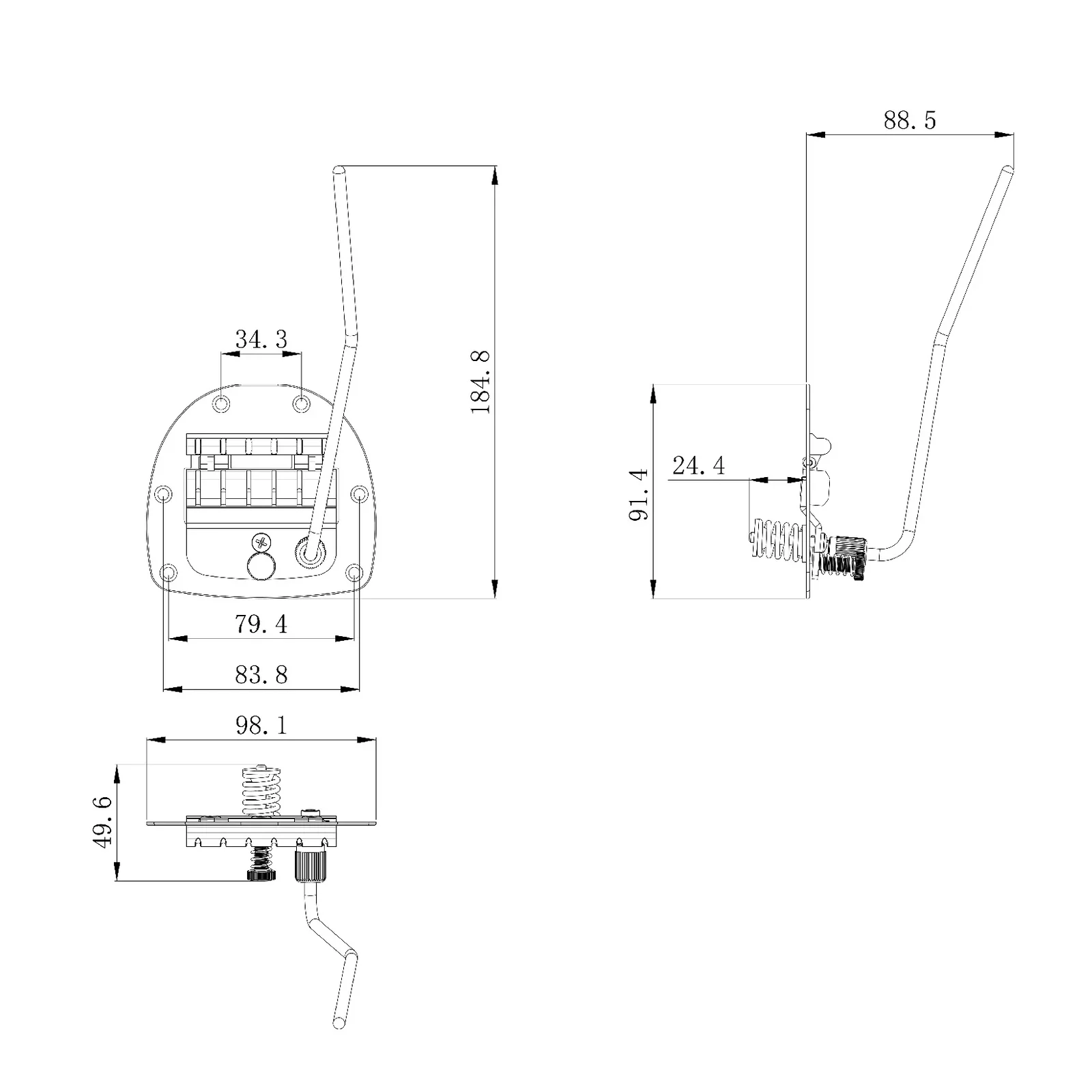

• Supplied size drawing shows a compact footprint with approx. 83.8 mm overall base width and 79.4 mm mounting width for fitment checking.
• Dimension drawing also confirms approx. 184.8 mm arm height, 98.1 mm overall depth, and 49.6 mm body depth.

Specifications:

• Type: Tremolo bridge system
• Model: JM002
• Vibrato Arm Material: Stainless steel
• Base Plate Material: Stainless steel
• Finish: Chrome
• Suitable For: Jazzmaster and Jazzmaster-style electric guitars with matching tremolo layout
• Mounting Hole Layout: 6 holes / 3 pairs
• Center Screw Pair Spacing: 83.8 mm
• Lower Hole Span: 79.4 mm
• Upper Screw Hole Pair Area: 34.3 mm
• Overall Arm Height: 184.8 mm
• Overall Depth: 98.1 mm
• Body Depth: 49.6 mm
• Side Height: 91.4 mm
• Spring Section Offset: 24.4 mm
• Arm Reach: 88.5 mm

Package Includes:

• 1 x JM002 tremolo unit
• 1 x Vibrato arm
• Mounting screws included
• Spring assembly included

Fitment Note / Warm Reminder:
Please verify your guitar uses a Jazzmaster-style tremolo mounting layout and confirm the base width, mounting width, and screw-hole pattern before ordering. This unit uses a 4-hole mounting base, and the rear adjustment screw can be used to change spring tension or lock the unit down for a more fixed-feel setup. It is not intended for guitars with non-matching tremolo routing or mounting dimensions.
